Code : H-130-EEL

      Capacity crimp 1/4" to 2" (R1, R2, 4SP, 4SH) and Industrial hose 3", H130 EEL is Eco-machine of 4 spiral 2". Electrical operate 220 V. Crimping force 210 Tons come with New Master Die Movement. Complete with standard 9 dies sets. Easy to choose dies set with Hoses size. Opening without die 154 mm.,H130 EEL come with new Double Cylinder system. Save energy estimate 15% when compare with other machine as same as capacity. Easy to us, Easy to maintenance. More information Tel. +(66) 02 - 874 0826, 089 - 199 6145



Code : H130 EL

      Capacity crimp 1/4" to 3" (Industrial hoses) และ 1/4" to 2" (1SN, 2SN, 4SP, 4SH) and 1.1/4" (6 spiral), Motor 4 kw/380V., H130 EL have new Double Acting cylinder include new Master Die Movement and complete with new time control crimping system and new time control re-crimping. New Optional Standard Quick Change Tool and Dispenser and Base. The H130 EL come with 10 dies sets. Easy to use. Modern Technology. Friendly users. Easy to maintenance. More information Tel. +(66) 02 - 874 0826, 089 - 199 6145



Code : H47 PM (Mobile Crimping machine)

      Capacity crimp 1/4" to 1" The H47 PM offers a compact, High performance hose assembly press that is suitable for maintenance, workshop, agricultural, mobile or breakdown standby use-buit to the usual high standards that you have come to expect from O+P. H47 PM has weight 32 Kg. only and dimension 39 x 51 x 30 cm. Easy to use, Easy to move on high performance. More information Tel. +(66) 02 - 874 0826, 089 - 199 6145



Code : H25 (Mobile Crimping machine for Agricultural)

      H25 is a simple and inexpensive light equipment, ideal for crimping low pressure hoses. Light and easy to move, It is the perfect equipment for out door service. Dimension 50 x 180 x 31 cm. More information Tel. +(66) 02 - 874 0826, 089 - 199 6145



รหัสสินค้า : H83 EEL

      Capacity crimp 1/4" to 1.1/2" (R1, R2, 4SP, 4SH), 1" R13 (6 Spiral) Electrical 220 V. Compact machine for less area, Crimping force 150 Tons US come with New Master Die Movement system. Complete with standard 7 dies sets and Opening without dies on front 118 mm. Easy to maintenance. More information Tel. +(66) 02 - 874 0826, 089 - 199 6145

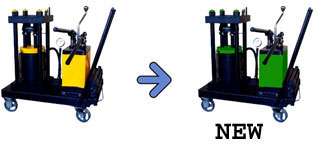

The big robust machine is compact and mounted on 4 solid castors for mobility and easy to use. The machine is ideal for servicing agriculture, construction, Automotive and industrial applications. CT - 24HP is a hand operated swaging machine designed to swage 1,2 wire braids hose to 4 high tensile steel wire spiral hose from 1/4" to1.1/4" ID. The machine comes with 6 standard die set type.

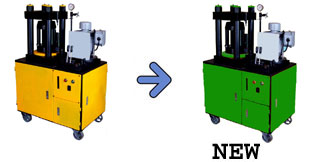

The big robust machine is compact and mounted on 4 solid castors for mobility and easy to use. The machine is ideal for servicing agriculture, construction, Automotive and industrial applications. CT - 32 MS is a electric gear pump operated swaging machine designed to swage 1,2 wire braids hose to 4 high tensile steel wire spiral hose from i.d. 1/4" to 2" ID. The machine comes with 9 standard die set type., Power - 3Hp 220/380 V.

The big robust machine is compact and mounted on 4 solid castors for mobility and easy to use. The machine is ideal for servicing agriculture, construction, Automotive and industrial applications. CT - 32 AMS is a electric gear pump operated swaging machine designed to swage 1,2 wire braids hose to 4 high tensile steel wire spiral hose from i.d. 1/4" to 2" ID. The machine comes with 9 standard die set type., Power - 3Hp 220/380 V.

CT-Cutting machine model is cutting machine for hydraulic hose, air hose, oil hose and etc. The blade import from France and have 2 slope for easy to cut. And the best quality environment system for healthy to reduce pollution smoke and soot of rubber. Especially, save and made your filter of tractor long life.

CT-Skiving machine model is new modern skiving machine for skive cover all hoses you need. The S 2 S Knife system (220 v.) can adjust length when you skive following you request. It's very user friendly.

CT-3AIR

Crimping machine for air condition hose. This model suit for air condition service shop and this machine can crimp all size (3 size) of air condition hoses such as R12 and 134a and air condition fittings taper, O-ring.

BS24-40B

Crimp hose i.d. 1/4” to 1.1/4” (R1, R2, 4SP), Motor 4kw/380V., Double acting cylinder ,crimping force 290 tonnes, Standard die set 7 sets. Groove on the front flange elbow (easy to crimp 90 degree elbow fitting flange), Easy maintenance with plug in Spare part. More information contact email; info@centraltechnic.net

BS32-50B
Crimp hose i.d.1/4 ” to 2” (R1, R2, 4SP, 4SH), Motor 5.5kw/380V., Double acting cylinder ,crimping force 370 tonnes, Standard die set 9 sets. Groove on the front flange elbow (easy to crimp 90 degree elbow fitting flange), Easy maintenance with plug in Spare part. More information contact email; info@centraltechnic.net

BS32-50HDF

Crimp hose i.d. 1/4 ” to 2” (R1, R2, 4SP, 4SH, R13, R15), Motor 5.5kw/380V., Double Acting cylinder ,crimping force 400 tonnes, Footstand crimp system (hands free operation), Once the preset size is attained the adjustable automatic retract system will return the dies to a preset position, Standard die set 13 sets. Groove on the front flange elbow (easy to crimp 90 degree elbow fitting flange), Easy maintenance with plug in spare part.
More information contact email; info@centraltechnic.net

BS20F-NC

Crimp Nut i.d. 1/4” to 2” , The BS 20NCF pre-assemble one piece fittings within this size range and also be used for the high speed assembly of small bore 1 and 2 wire up to -08. The machine comes complete with adjustable location stops, a full set of 10 dies, foot pedal control and auto retract as standard. More information contact email; info@centraltechnic.net
