| Fitting Code : NPT
THREAD |
| Fitting Code : BSP
THREAD
|
|

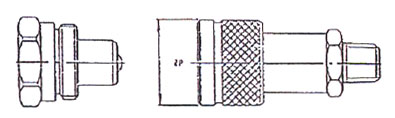

| HIGH
PRESSURE QUICK RELEASE CONNECT COUPLING. |
| SERIE
PAV-ISO-7241-A |
| (INTERCHANGEABLE
WITH FASTER ANV, PARKER 66, AEROQUIP 5600, NITTO
210, GEJN 95, STERLINE C100) |
|
|
Code
|
Size
|
Pressure
(psi)
|
Plug
(ตัวผู้)
|
Socket
(ตัวเมีย)
|
|
PAV06-1/4 BSPT
|
1/4"
|
5,100
|
QBP-04
|
QBS-04
|
|
PAV10-3/8 BSPT
|
3/8"
|
4,400
|
QBP-06
|
QBS-06
|
|
PAV13-1/2 BSPT
|
1/2"
|
3,600
|
QBP-08
|
QBS-08
|
|
PAV19-3/4 BSPT
|
3/4"
|
3,600
|
QBP-12
|
QBS-12
|
|
PAV25-1 BSPT
|
1"
|
3,300
|
QBP-16
|
QBS-16
|
|
PAV31-1.1/4 BSPT
|
1.1/4"
|
3,600
|
QBP-20
|
QBS-20
|
|
PAV38-1.1/2 BSPT
|
1.1/2"
|
2,900
|
QBP-24
|
QBS-24
|
|
Code
|
Size
|
Pressure
(psi)
|
Plug
(ตัวผู้)
|
Socket
(ตัวเมีย)
|
|
PAV06-1/4 BSPT
|
1/4"
|
5,100
|
QBP-04
|
QBS-04
|
|
PAV10-3/8 BSPT
|
3/8"
|
4,400
|
QBP-06
|
QBS-06
|
|
PAV13-1/2 BSPT
|
1/2"
|
3,600
|
QBP-08
|
QBS-08
|
|
PAV19-3/4 BSPT
|
3/4"
|
3,600
|
QBP-12
|
QBS-12
|
|
PAV25-1 BSPT
|
1"
|
3,300
|
QBP-16
|
QBS-16
|
|
PAV31-1.1/4 BSPT
|
1.1/4"
|
3,600
|
QBP-20
|
QBS-20
|
|
PAV38-1.1/2 BSPT
|
1.1/2"
|
2,900
|
QBP-24
|
QBS-24
|
|
|
| Fitting Code : NPT
THREAD |
|
| SERIE
QSC / QSP (คัปปิ้ง น้ำมัน 10,000 PSI) |
| SCREW-TYPE,
CONNECT / DISCONNECT UNDERPERSSURE, INTERCHANGEABLE
WITH PARKER 3000 & FASTER PVVM. |
|
|
Code
|
Size
|
Pressure
(psi)
|
Plug
(ตัวผู้)
|
Socket
(ตัวเมีย)
|
|
PVS04-1/4 NPT
|
1/4"
|
10,000
|
QVP-04
|
QVS-04
|
|
PVS06-3/8 NPT
|
3/8"
|
10,000
|
QVP-06
|
QVS-06
|
